Mechanical strength of alloys

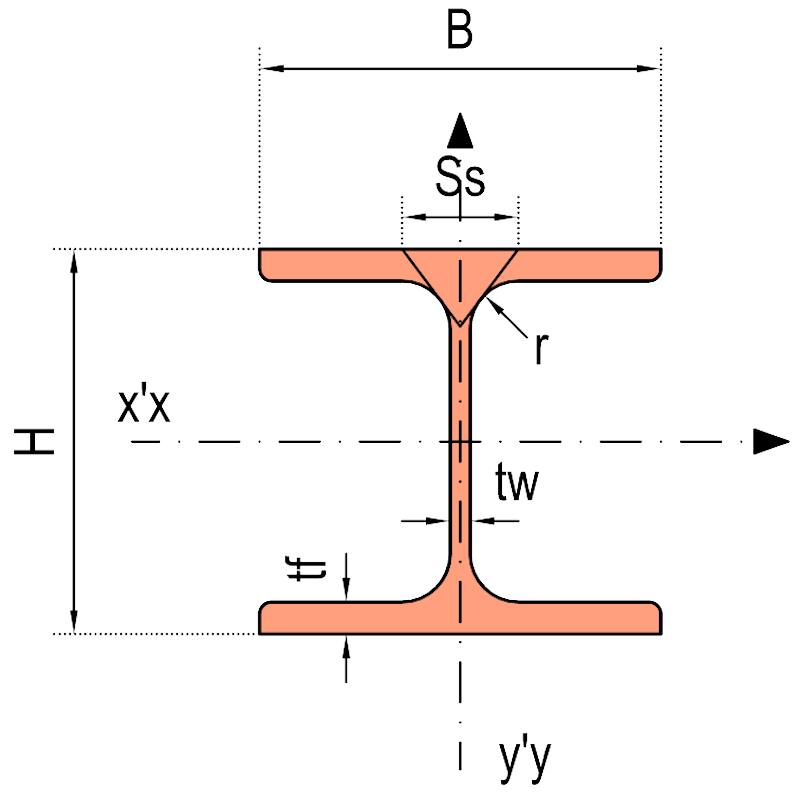

SANLEV SA manufactures aluminum profiles of the series 6000 as well as other series depending on the demand. The mechanical tolerances of the alloys used are illustrated in the table.

Alloy Extruded Product Temper Dimensions
D(1), S(2), or e,
mm
Rm
Mpa
Rp0,2
Mpa
A
%
A50 mm
%
min max min max min min
1050A rod/bar F (4), ă112 all all 60 - 20 - 25 23
O, H111 all all 60 95 20 - 25 23
Tube F (4), ă112 all 60 - 20 - 25 23
O, H111 all 60 95 20 - 25 23
Profile F (4), ă112 all 60 - 20 - 25 23
6060 rod/bar T4  (5) ≤ 150 ≤ 150 120 - 60 - 16 14
T5 ≤ 150 ≤ 150 160 - 120 - 8 6
T6  (5) ≤ 150 ≤ 150 190 - 150 - 8 6
T64  (5,8) ≤ 50 ≤ 50 180 - 120 - 12 10
T66  (5) ≤ 150 ≤ 150 215 - 160 - 8 6
Tube T4  (5) ≤ 15 120 - 60 - 16 14
T5 ≤ 15 160 - 120 - 8 6
T6  (5) ≤ 15 190 - 150 - 8 6
T64  (5,8) ≤ 15 180 - 120 - 12 10
T66  (5) ≤ 15 215 - 160 - 8 6
Profile T4  (5) ≤ 25 120 - 60 - 16 14
T5 ≤ 5 160 - 120 - 8 6
5 < e ≤ 25 140 - 100 - 8 6
T6  (5) ≤ 3 190 - 150 - 8 6
3 < e ≤ 25 170 - 140 - 8 6
T64  (5,8) ≤ 15 180 - 120 - 12 10
T66  (5) ≤ 3 215 - 160 - 8 6
3 < e ≤ 25 195 - 150 - 8 6
6063 rod/bar O, H111 ≤ 200 ≤ 200 - 130 - - 18 16
T4  (5) ≤ 150 ≤ 150 130 - 65 - 14 12
150 < D ≤ 200 150 < S ≤ 200 120 - 65 - 12 -
T5 ≤ 200 ≤ 200 175 - 130 - 8 6
T6  (5) ≤ 150 ≤ 150 215 - 170 - 10 8
150 < D ≤ 200 150 < S ≤ 200 195 - 160 - 10 -
T66  (5) ≤ 200 ≤ 200 245 - 200 - 10 8
Tube O, H111 ≤ 25 - 130 - - 18 16
T4  (5) ≤ 10 130 - 65 - 14 12
10 < e ≤ 25 150 - 65 - 12 10
T5 ≤ 25 175 - 130 - 8 6
T6  (5) ≤ 25 215 - 170 - 10 8
T66  (5) ≤ 25 245 - 200 - 10 8
Profile T4  (5) ≤ 25 130 - 65 - 14 12
T5 ≤ 3 175 - 130 - 8 6
3 < e ≤ 25 160 - 110 - 7 5
T6  (5) ≤ 10 215 - 170 - 8 6
10< e ≤ 25 195 - 160 - 8 6
T64  (5,8) ≤ 25 180 - 120 - 12 10
T66  (5) ≤ 10 245 - 200 - 8 6
10< e ≤ 25 225 - 180 - 8 6
6063A rod/bar O, H111 ≤ 200 ≤ 200 - 150 - - 16 14
T4  (5) ≤ 150 ≤ 150 150 - 90 - 12 10
150 < D ≤ 200 150 < S ≤ 200 140 - 90 - 10 -
T5 ≤ 200 ≤ 200 200 - 160 - 7 5
T6  (5) ≤ 150 ≤ 150 130 - 190 - 7 5
150 < D ≤ 200 150 < S ≤ 200 220 - 160 - 7 -
Tube O, H111 ≤ 25 - 130 - - 16 14
T4  (5) ≤ 10 150 - 90 - 12 10
10 < e ≤ 25 140 - 90 - 10 8
T5 ≤ 25 200 - 160 - 7 5
T6  (5) ≤ 25 230 - 190 - 7 5
Profile T4  (5) ≤ 25 150 - 90 - 12 10
T5 ≤ 10 200 - 160 - 7 5
10 < e ≤ 25 190 - 150 - 6 4
T6  (5) ≤ 10 230 - 190 - 7 5
10< e ≤ 25 220 - 180 - 5 4
6005A rod/bar T6  (5) ≤ 25 ≤ 25 270 - 225 - 10 8
25 < D ≤ 50 25 < S ≤ 50 270 - 225 - 8 -
50 < D ≤ 100 50 < S ≤ 100 260 - 215 - 8 -
Tube T6  (5) ≤ 5 270 - 225 - 8 6
5 < e ≤ 10 260 - 215 - 8 6
Profile Open Profile
T4  (5) ≤ 25 180 - 90 - 15 13
T6  (5) ≤ 5 270 - 225 - 8 6
5< e ≤ 10 260 - 215 - 8 6
10< e ≤ 25 250 - 200 - 8 6
Hollow Profile
T4  (5) ≤ 10 180 - 90 - 15 13
T6  (5) ≤ 5 255 - 215 - 8 6
  5< e ≤ 15 250 - 200 - 8 6
6082 rod/bar ¤, ă111 ≤ 200 ≤ 200 - 160 - 110 14 12
T4  (5) ≤ 200 ≤ 200 205 - 110 - 14 12
T6 (5) ≤ 20 ≤ 20 295 - 250 - 8 6
20 < D ≤ 150 20 < D ≤ 150 310 - 260 - 8 -
150 < D ≤ 200 150 < D ≤ 200 280 - 240 - 6 -
200 < D ≤ 250 200 < D ≤ 250 270 - 200 - 6 -
Tube O, H111 ≤ 25 - 160 - 110 14 12
T4  (5) ≤ 25 205 - 110 - 14 12
T6  (5) ≤ 5 290 - 250 - 8 6
5 < e ≤ 25 310 - 260 - 10 8
Profile O, H111 all - - - 110 14 12
T4  (5) ≤ 25 205 - 110 - 14 12
Open Profile
T5 ≤ 5 270 - 230 - 8 6
T6  (5) ≤ 5 290 - 250 - 8 6
5< e ≤ 25 310 - 260 - 10 8
Hollow Profile
T5 ≤ 5 270 - 230 - 8 6
T6  (5) ≤ 5 290 - 250 - 8 6
  5< e ≤ 15 310 - 260 - 10 8
6463 rod/bar T4  (5) ≤ 150 ≤ 150 125 - 75 - 14 12
T5 ≤ 150 ≤ 150 150 - 110 - 8 6
T6  (5) ≤ 150 ≤ 150 195 - 160 - 10 8
Tube T6  (5) ≤ 25 195 - 160 - 10 8
Profile T4  (5) ≤50 125 - 75 - 14 12
T5 ≤ 50 150 - 110 - 8 6
T6  (5) ≤ 50 195 - 160 - 10 8
6061 rod/bar ¤, ă111 ≤ 200 ≤ 200 - 150 - 110 16 14
T4  (5) ≤ 200 ≤ 200 180 - 110 - 15 13
T6 (5) ≤ 200 ≤ 200 260 - 240 - 8 6
Tube O, H111 ≤ 25 - 150 - 110 16 14
T4  (5) ≤ 25 180 - 110 - 15 13
T6  (5) ≤ 5 260 - 240 - 8 6
5 < e ≤ 25 260 - 240 - 10 8
Profile
T4 ≤ 25 180 - 110 - 15 13
T6  (5) ≤ 5 260 - 240 - 9 7
  5< e ≤ 25 260 - 240 - 10 8

Notes:
1 D= Diameter for round bar
2 S = Width across flats for square & hexagonal bar, thickness for rectangular bar
3 e = Wall thickness
4 F Temper: property values are for information only
5 properties may be obtained by press quenching
8 Bending Quality
10 If a profile cross-section is comprised of different thicknesses which fall in more than one set of specified machanical property values, the lowest specidied value shall be considered as valid for the whole profile cross-section
