Advantages of SP systems:
  • Reduction of final mounting cost due to great spans d>4m.
  • Optimization of cost effectiveness of the construction in the entire Photovoltaic Park following an integrated design by our company with experimental arrangements in a wind tunnel and flow analysis simulation in Computation Fluid Dynamics computer networks of the National Technical University of Athens for the calculation of actual wind loads applied on the structures.
  • Patented connection systems that do not require additional accessories. Aluminumconnections without the use of stainless steel plates.
  • Complete Parametric foundation design according to the provisions of EC7 for all soil conditions in Greece for all our systems.
  • Foundation, based on a design that uses actual test loading of piles (pull out), in the soil under investigation.
  • Suitable for all types of foundation:


System categories

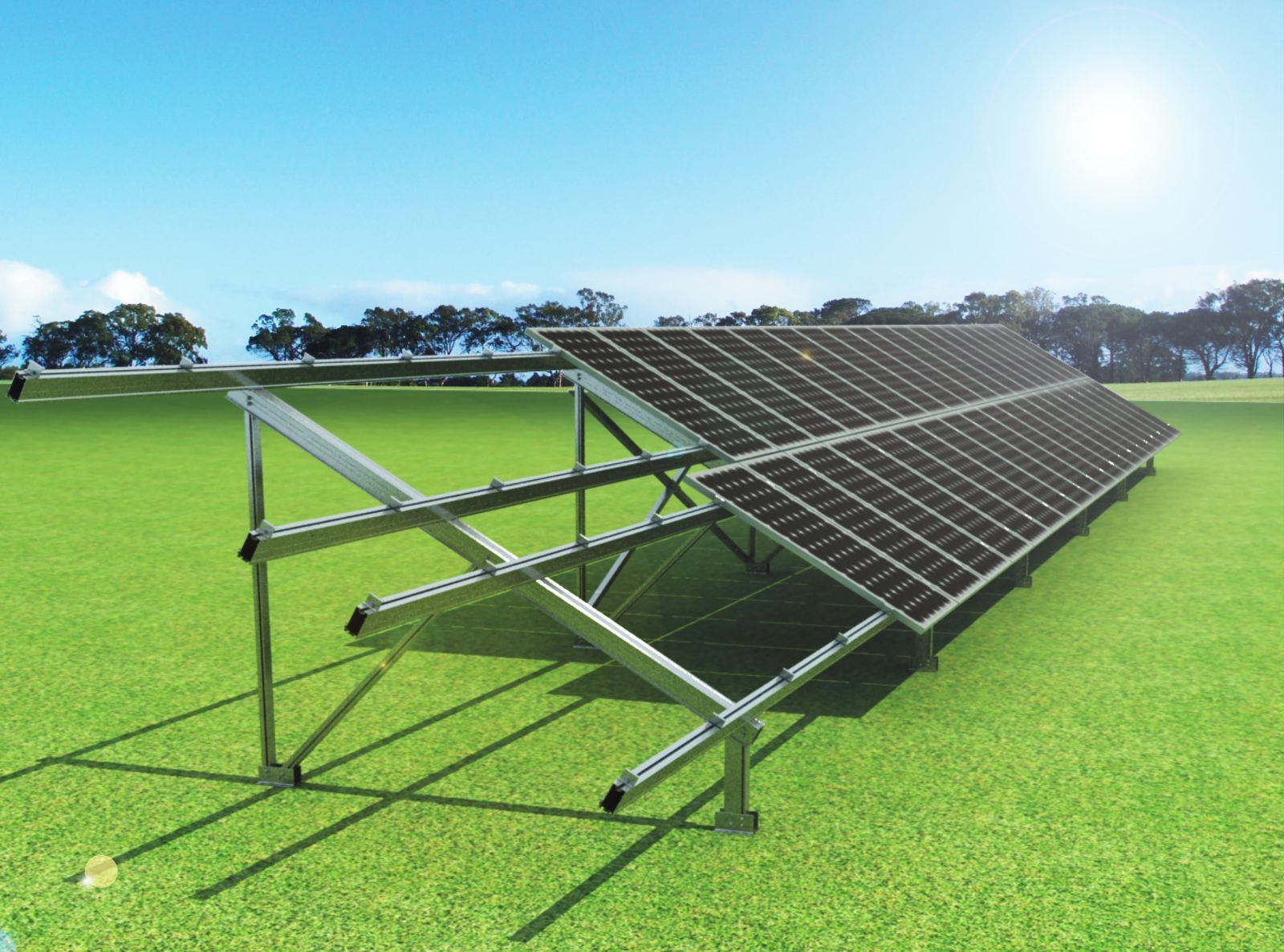

SP61000

Double pole mounting system for outdoor PV installations.

Advantages:
  • Opening ranges from 2.75 to 4.2 m
  • Ergonomic design of the profile for minimizing the assembly time required for large scale projects.
  • Ideal for areas with extreme weather conditions and difficult terrain.


SP63000

Ôhree panel system in landscape format.


SP 65000

Ôwo meter long – panels in portrait format.

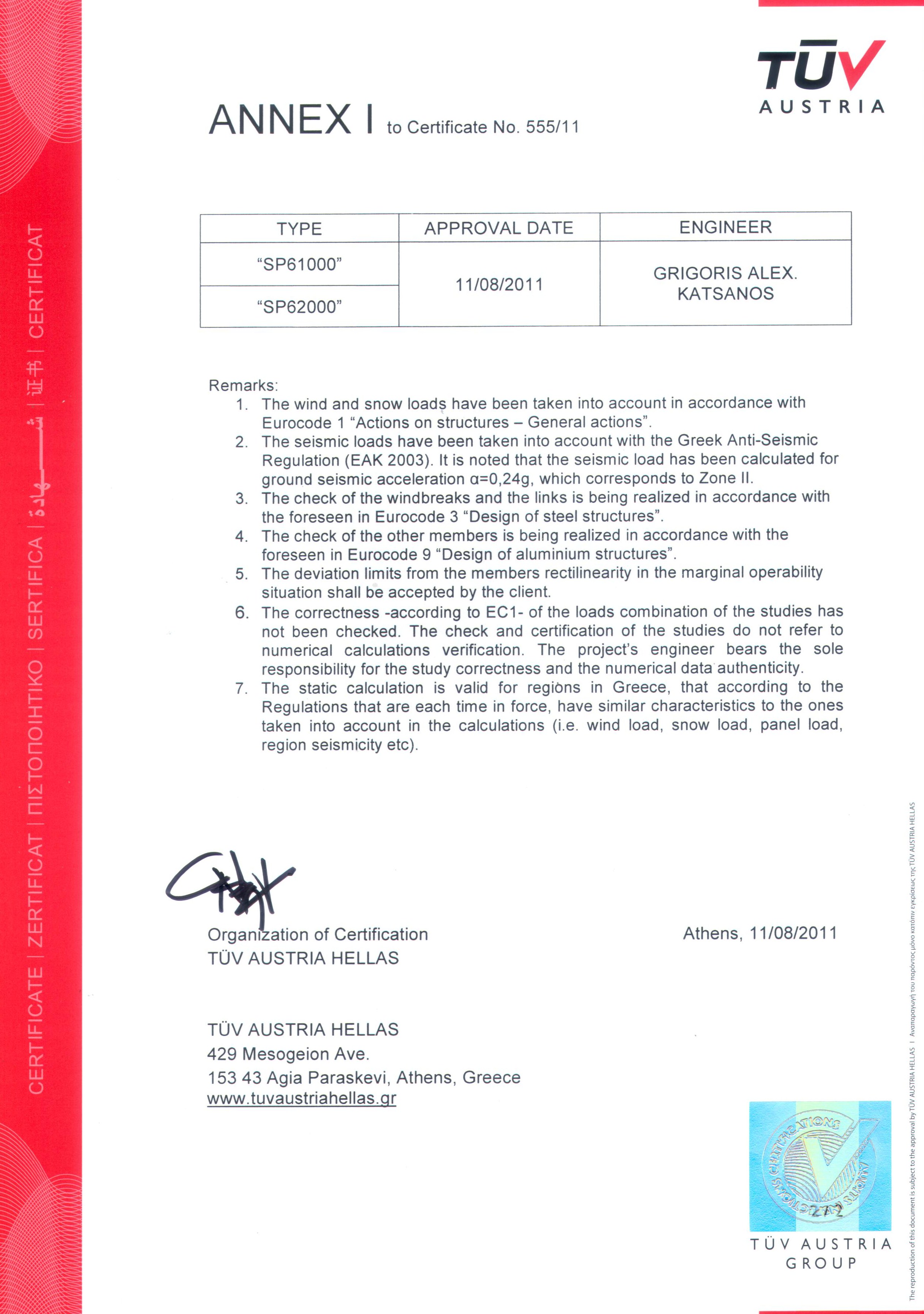

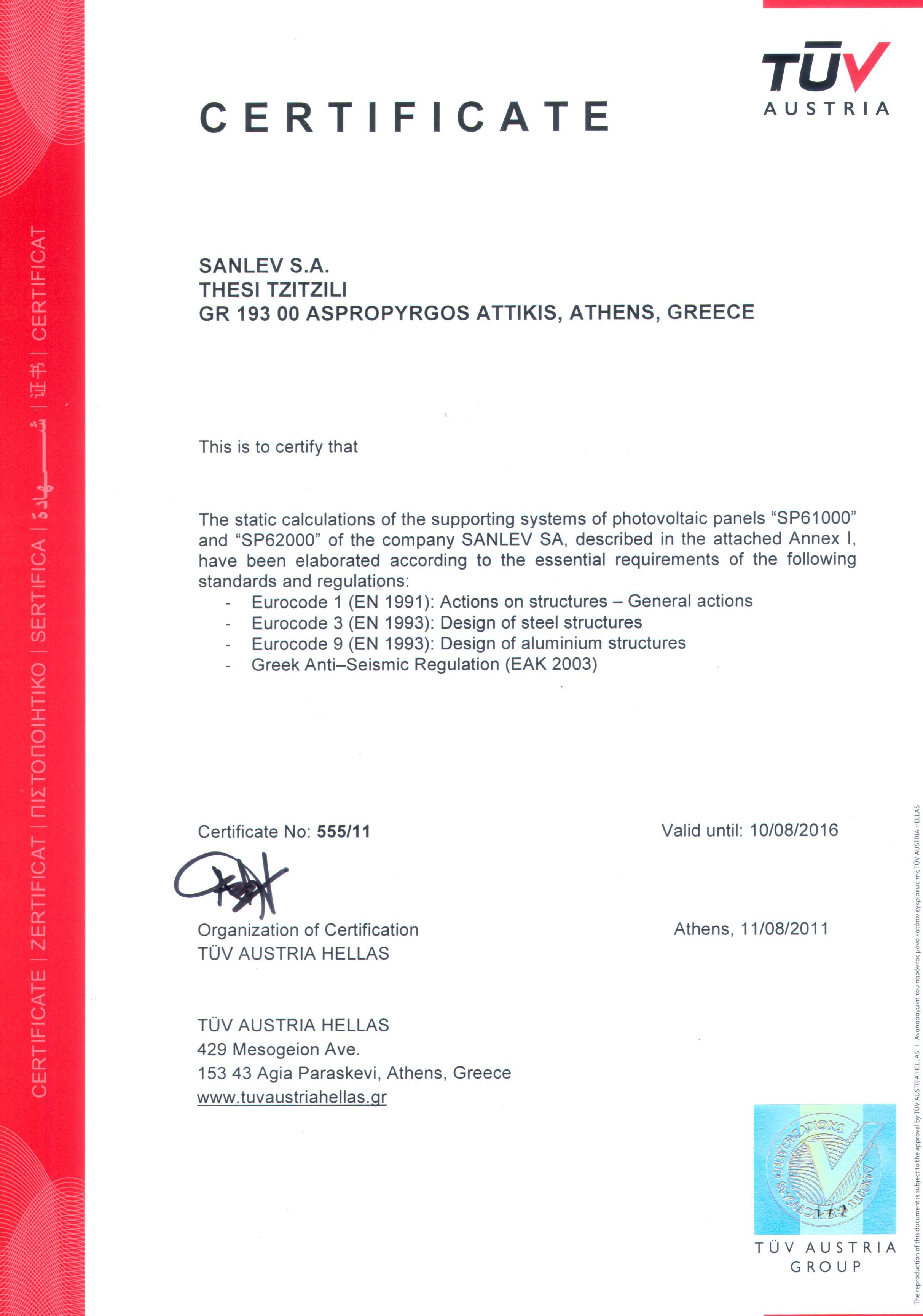

Product Certifications

Certification 1Certification 2Certification 3Certification 4
